Devices

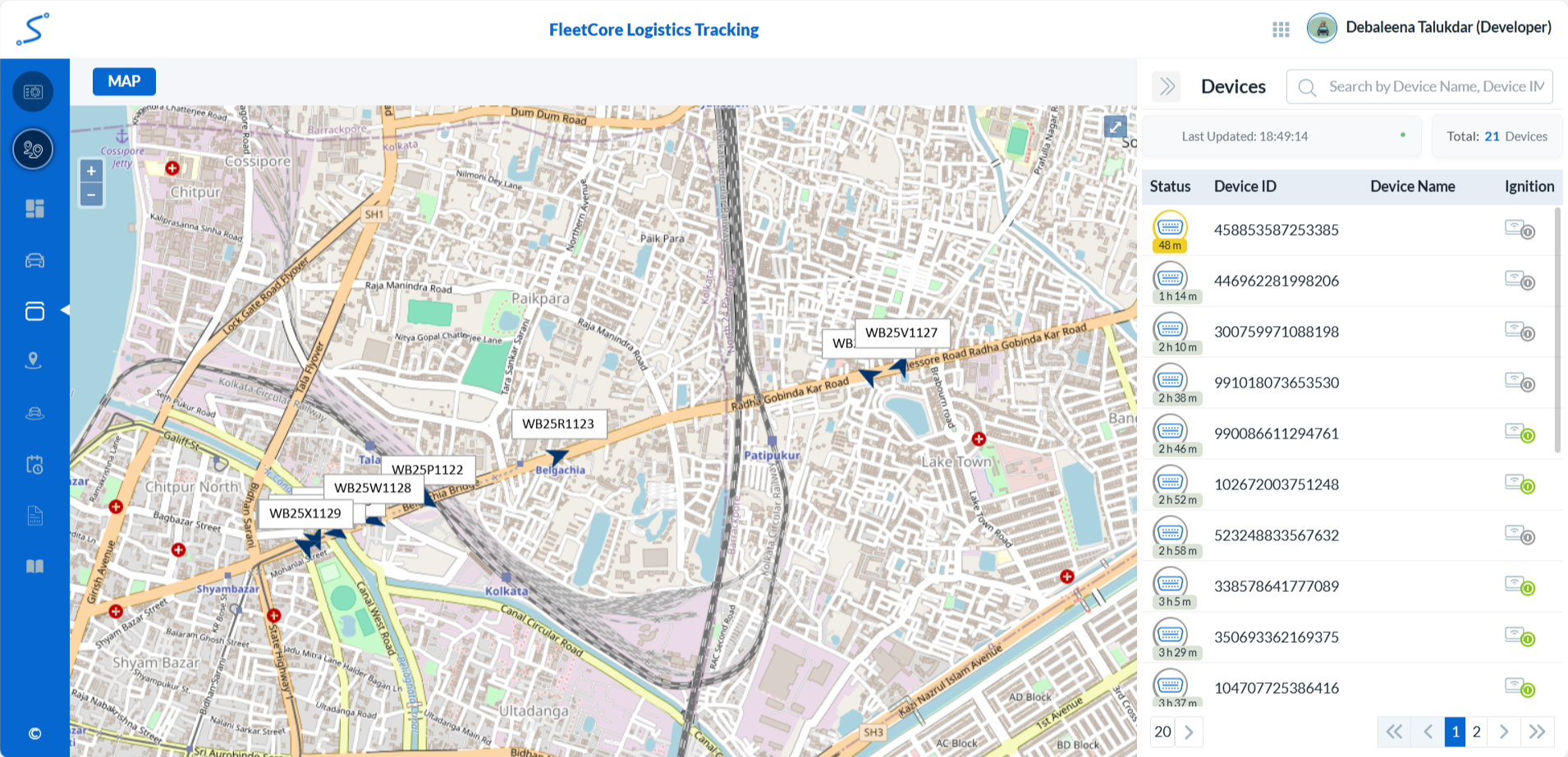

After logging into the Tracking Portal, select Devices from the left navigation panel. This page displays a list of all devices along with their details, accompanied by a map showing their locations.

To be Updated... Tracking Device

Overview​

The Devices section provides a powerful and comprehensive overview of your entire fleet. Some of its key features include:

  • Comprehensive device list with color-coded status indicators (active, idle, offline) for instant activity insight.

  • Real-time device mapping for quick location monitoring.

  • Live and Historical Tracking to monitor current movement or review past activity.

  • Detailed Track Points with customizable data (timestamp, address, speed, battery, fuel, etc.).

  • Access to Raw Data for deep analysis or external system integration.

  • Trip and Event visibility shown directly on the map for better context.

  • Five map view options to suit different user preferences.

  • Two layout choices for a customizable viewing experience.

Devices List​

  • Devices are sorted by most recent activity, with the latest at the top.

  • Pagination at the bottom of the page lets you browse through the list.

  • You can search by Device Name, Device IMEI or Plate Number to quickly find a device.
  • Click any device entry to view detailed information.

  • The list refreshes every 15 seconds, with the last update time shown at the top.

  • The status column uses three different colors to represent the freshness of the last received data:

    • Green – Data is recent (Device Active).

    • Yellow – Data is slightly old (Device Idle).

    • Grey – Data is outdated (Device Offline).

To be Updated...Tracking Device List

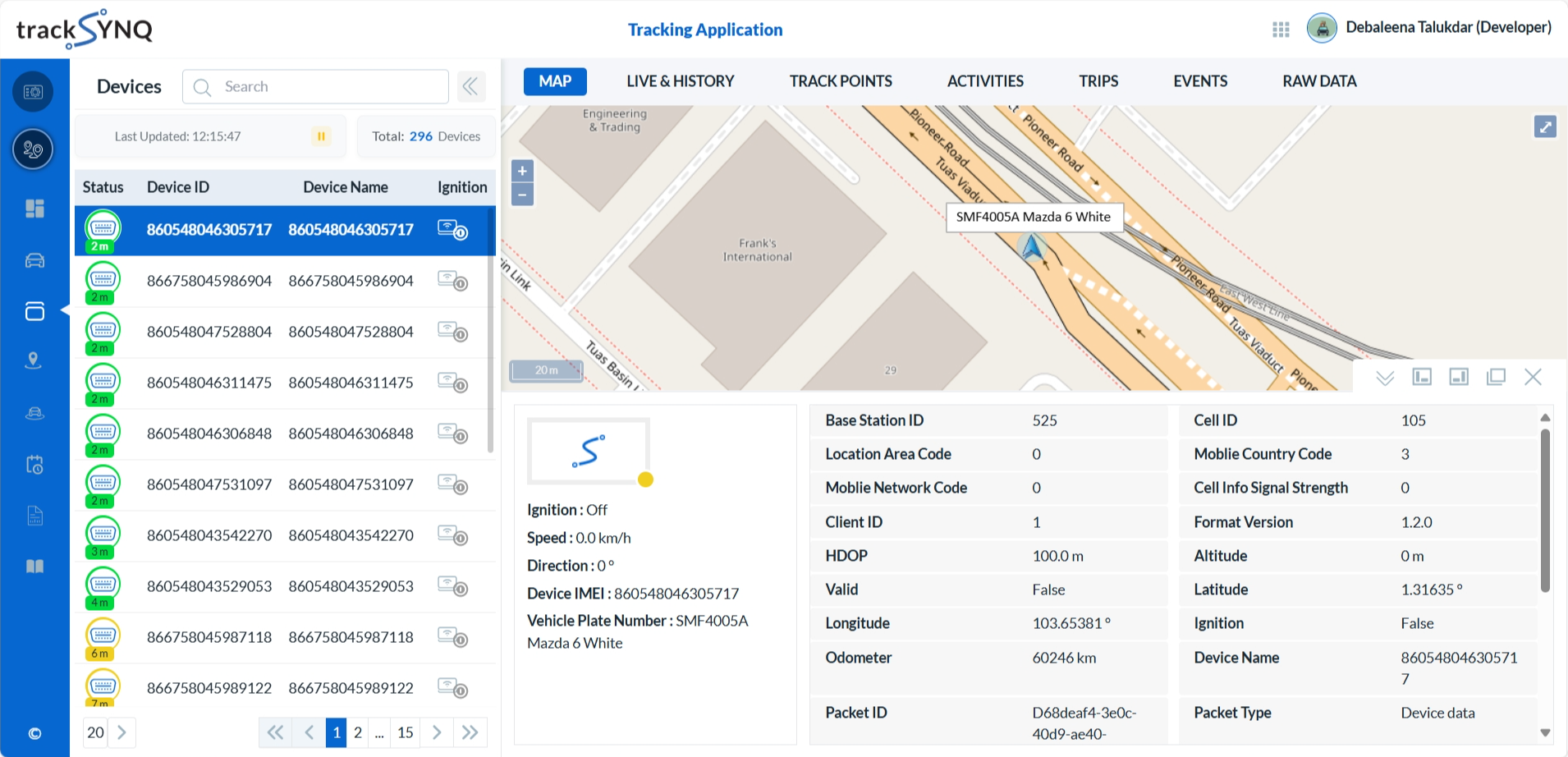

Device Map​

When a device is selected from the list, and the Map section is chosen it displays the zoomed map with the last received location of the selected device and detailed information about that particular device. If you see too many or too few data fields and wish to customize them, please contact your FMDP Administrator.

The selected device is highlighted in the list. On the map, it is also marked with a light blue circular background. When you hover over the device icon, its plate number and current speed are displayed.

To be Updated... Tracking Device Map

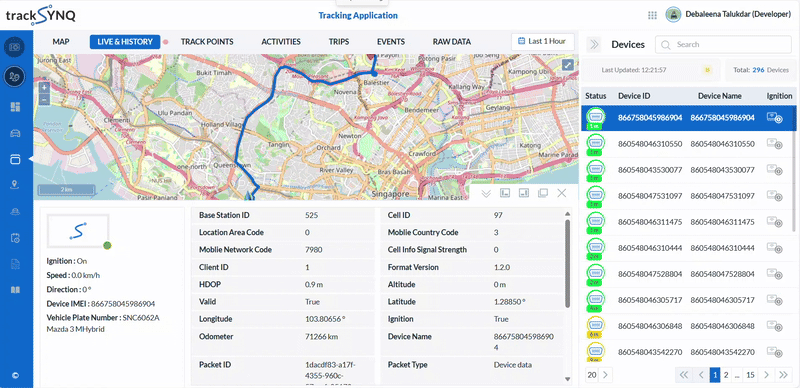

Device Live & History​

  • On device selection, the Live & History tab opens by default, showing its current location on the map.
  • Device data (speed, direction, latitude, longitude, etc.) is displayed and auto-refreshed.
  • A blinking red button beside the Live & History tab indicates that the device is currently active.
  • To view Live Data, you can select a time range: Last 1 Hour (default), Last 2 Hours, Last 6 Hours, Last 12 Hours, or Last 24 Hours.
  • To view Historical Data, choose Custom Range from the calendar. For more details check Change Time Range.

To be Updated... Tracking Device Live And History

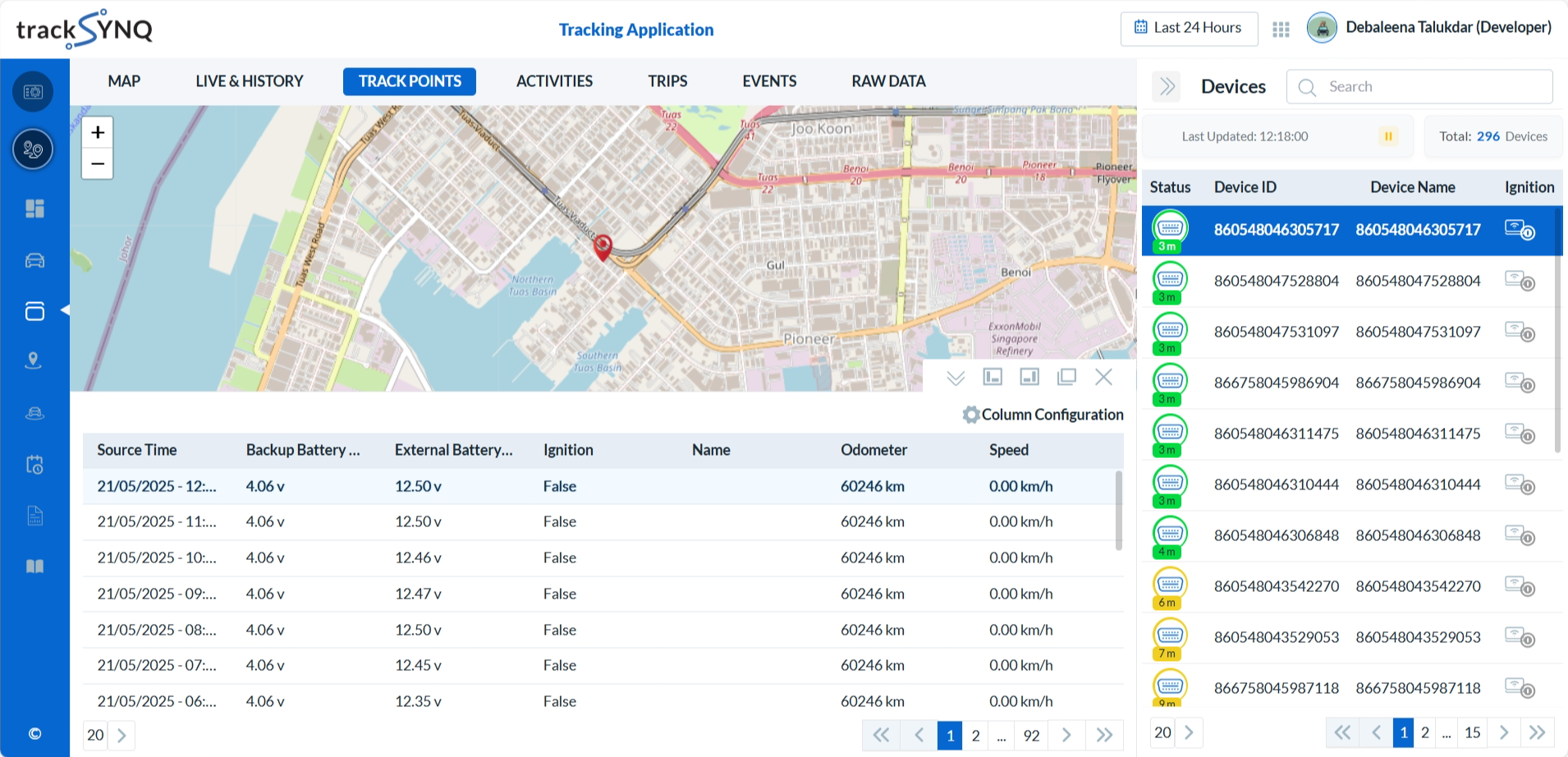

Device Track Points​

  • Selecting a device and opening the Track Points tab displays its most recent track point on the map.
  • A list of all track points appears below the map, sorted with the latest first.
  • Clicking a track point in the list highlights the corresponding row and displays its location on the map.
  • Column Configuration lets you customize which data fields are to be shown in the track points table.
  • Filter track points by a specific time or date range. Change Time Range
  • Use Pagination to browse through all track points for the selected device.
  • Hovering over the device on the map shows its latitude and longitude.

To be Updated... Tracking Device Track Points

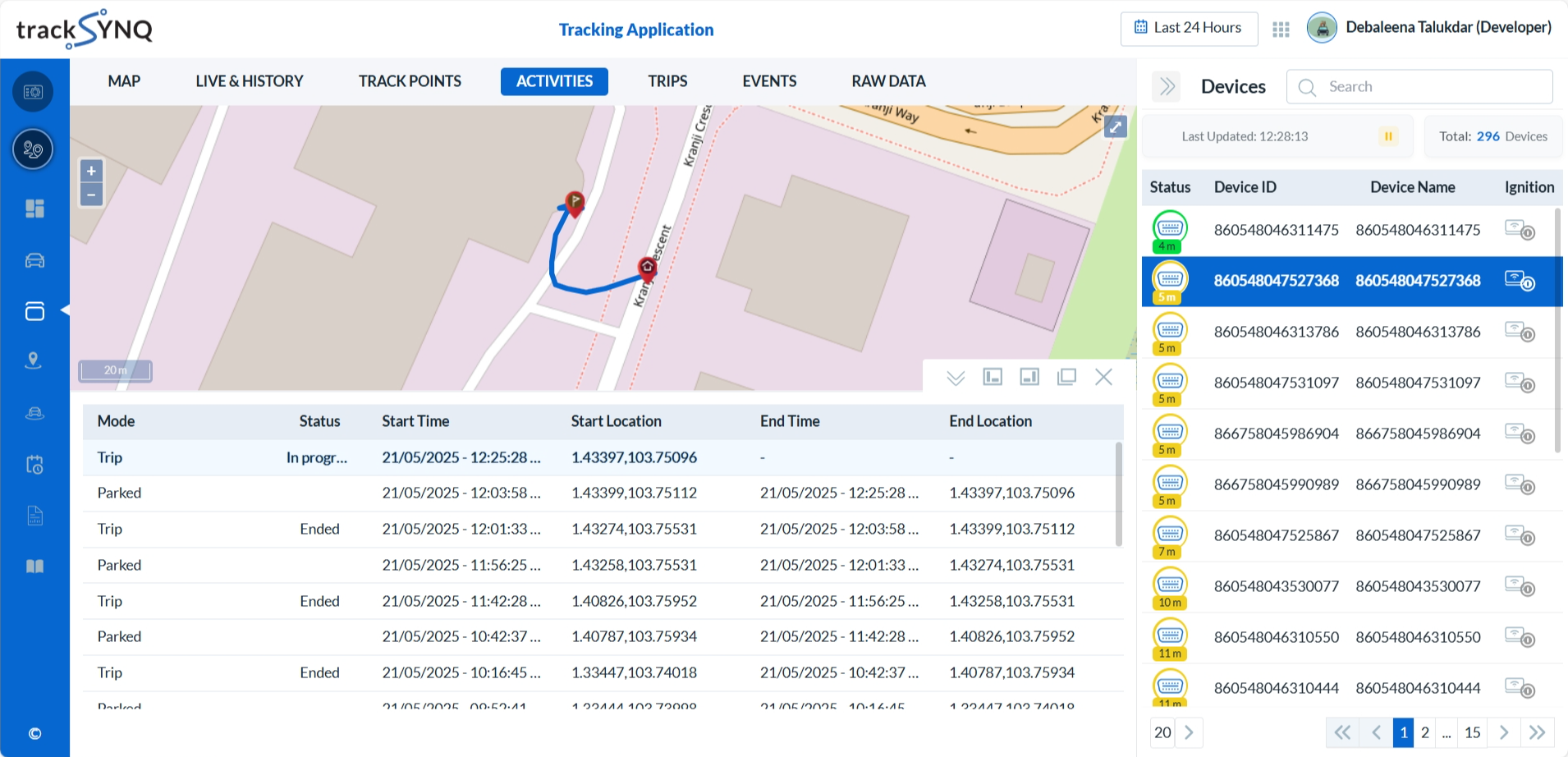

Device Activities​

  • Selecting a device and opening the Activities tab displays its most recent activity (Trip/Parked) on the map.
  • A list of all activities appears below the map, sorted with the latest first.
  • Clicking an activity in the list, highlights the corresponding row and displays it on the map.
  • Filter activities by time or date range. Change Time Range
  • Use Pagination to browse through all activities for the selected device.
  • Hovering over any point on the route shows address, coordinates, direction, and speed.

To be Updated... Tracking Device Activities

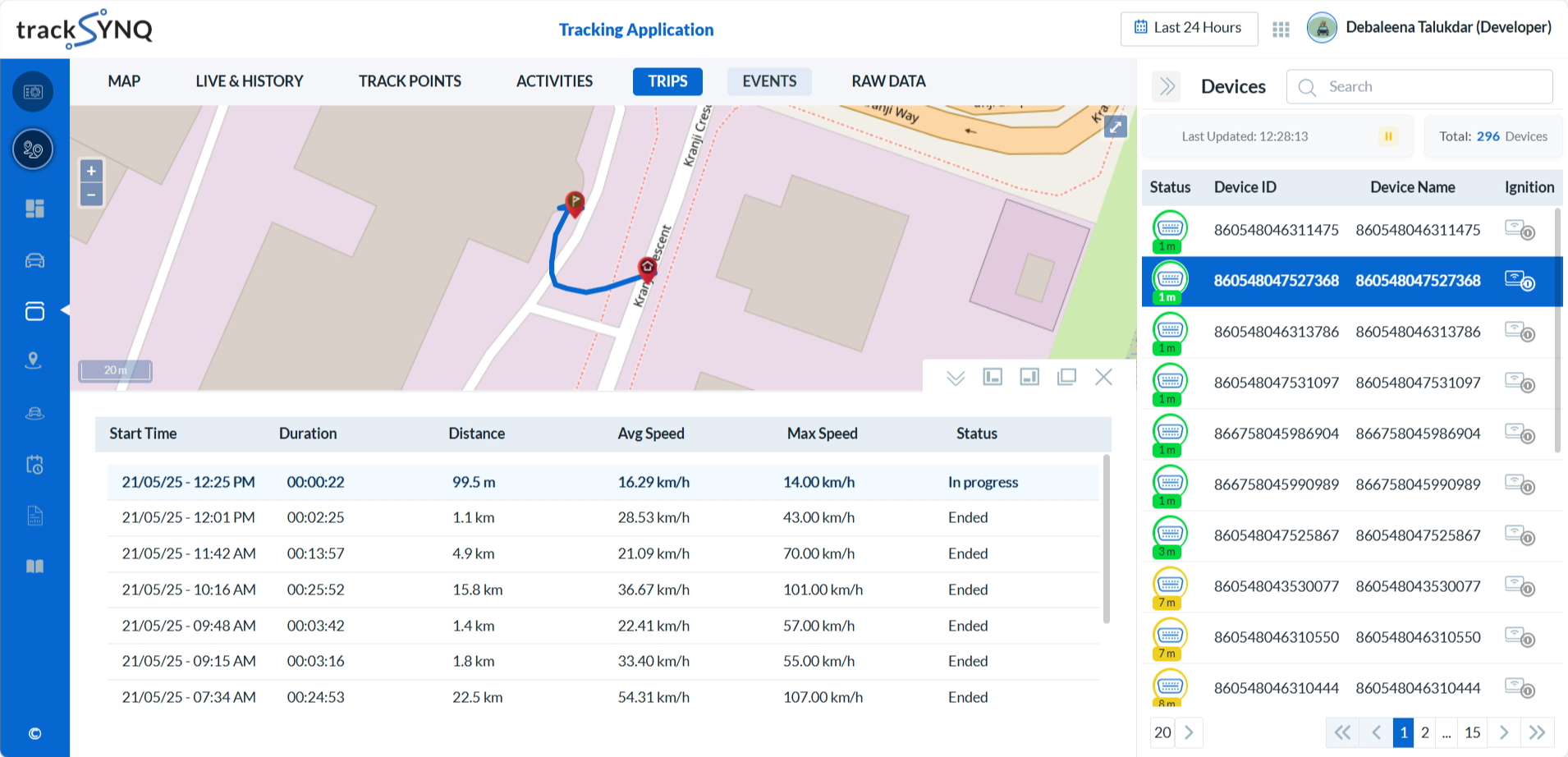

Device Trips​

  • Selecting a device and the Trips tab displays its most recent trip on the map.
  • A list of all trips appears below the map, sorted with the latest first.
  • Each trip shows whether it's in progress or completed.
  • Clicking a trip in the list, highlights the corresponding row and displays it on the map.
  • Filter trips by time or date range. Change Time Range
  • Use Pagination to browse through all trips for the selected device.
  • Hovering over the route shows address, coordinates, direction, and speed.

To be Updated... Tracking Device Trips

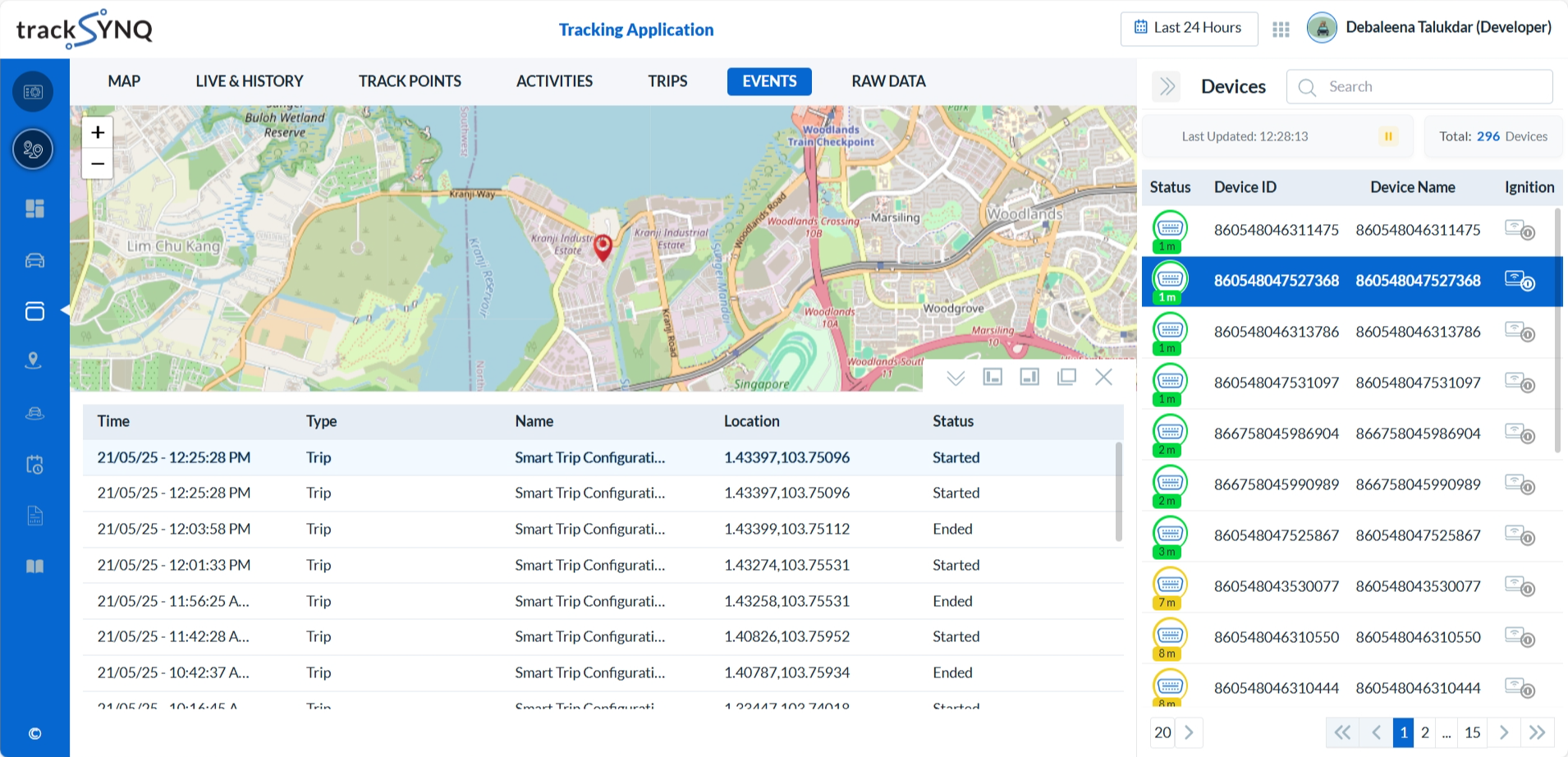

Device Events​

  • Selecting a device and opening the Events tab displays its most recent event on the map.
  • A list of all events appears below the map, with the latest shown first.
  • Each event shows the time, name, and type (e.g., Geofence, Low Battery, Speeding).
  • Clicking an event in the list, highlights the corresponding row and displays its location on the map.
  • Filter events by specific time or date range. Change Time Range
  • Use Pagination to browse through all events for the selected device.
  • Hovering over the device shows its latitude and longitude on the map.

To be Updated... Tracking Device Events

Device Raw Data​

  • Selecting a device and opening the Raw Data tab shows all raw data packets for the selected device.
  • Each entry displays the Packet ID and the time when the packet was received by the server.
  • Filter by time or date range. Change Time Range
  • Use Pagination to browse browse all raw data entries.

To be Updated... Tracking Device Raw Data

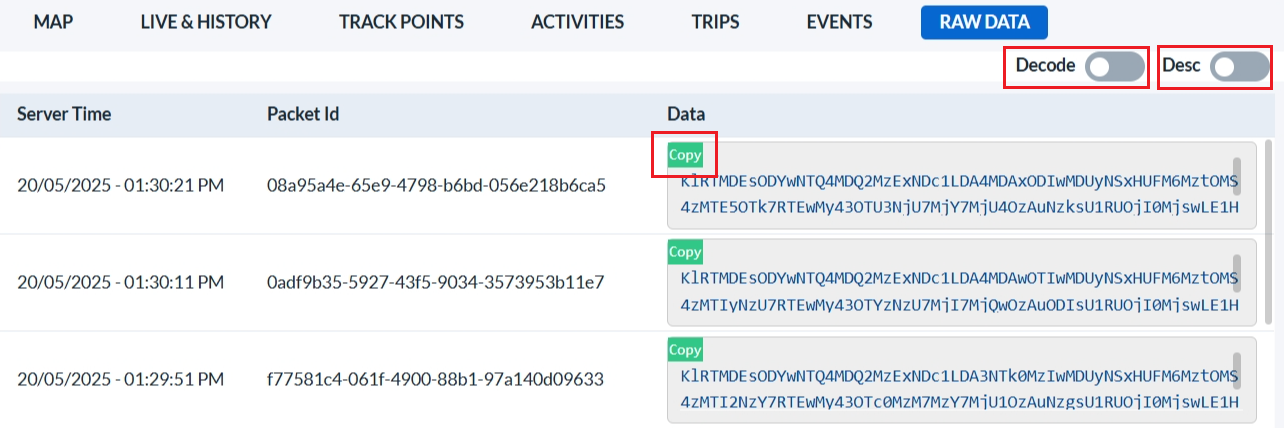

  • Click Decode to view decoded packet content, or Copy to copy the data.
note

Decoding is only possible if the data is in text format, and not in binary form.

  • Data is listed with the latest on top by default. Use the Desc toggle to sort chronologically.

Tracking Device Raw Data Functions
