OBD Codes

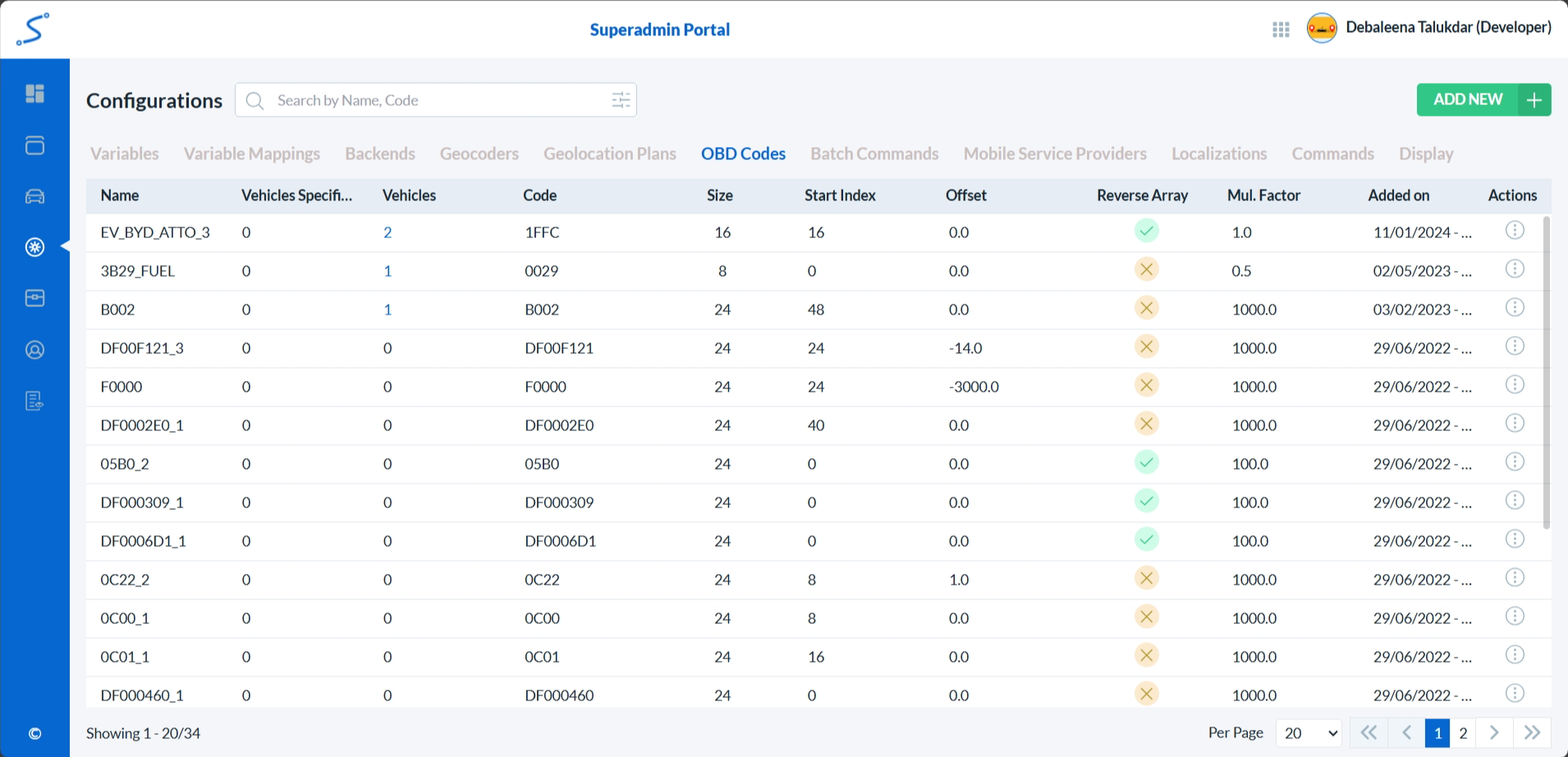

After logging into the Super Admin Portal, select Configurations from the left navigation panel and choose OBD Codes sub-tab. This page displays a list of all OBD codes along with their details.

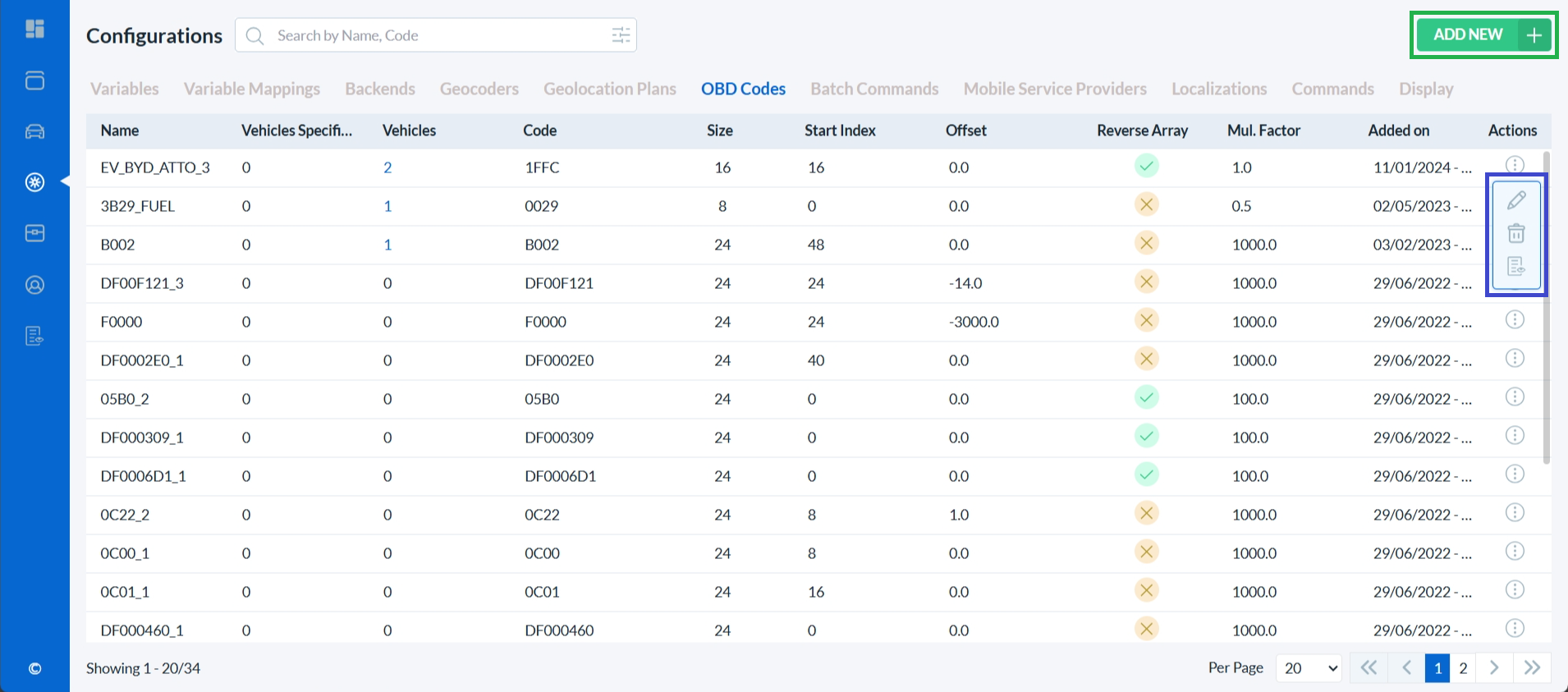

OBD Codes List
OBD Codes are listed in reverse chronological order — the most recently added OBD code appear at the top.
Use the Pagination controls at the bottom of the page to navigate through the OBD code list.
Easily locate a OBD code using the search functionality by entering the OBD code name and OBD code.
To add a new OBD code, click on the Add New button. (highlighted with a green box)
To edit a OBD code or view its audit trail or delete it, click on the corresponding icon in the Actions column (highlighted with a blue box).
To edit or view the details of a OBD code click on the first icon.
To delete a OBD code click on the second icon.
To view the audit details of a OBD code click on the second icon.

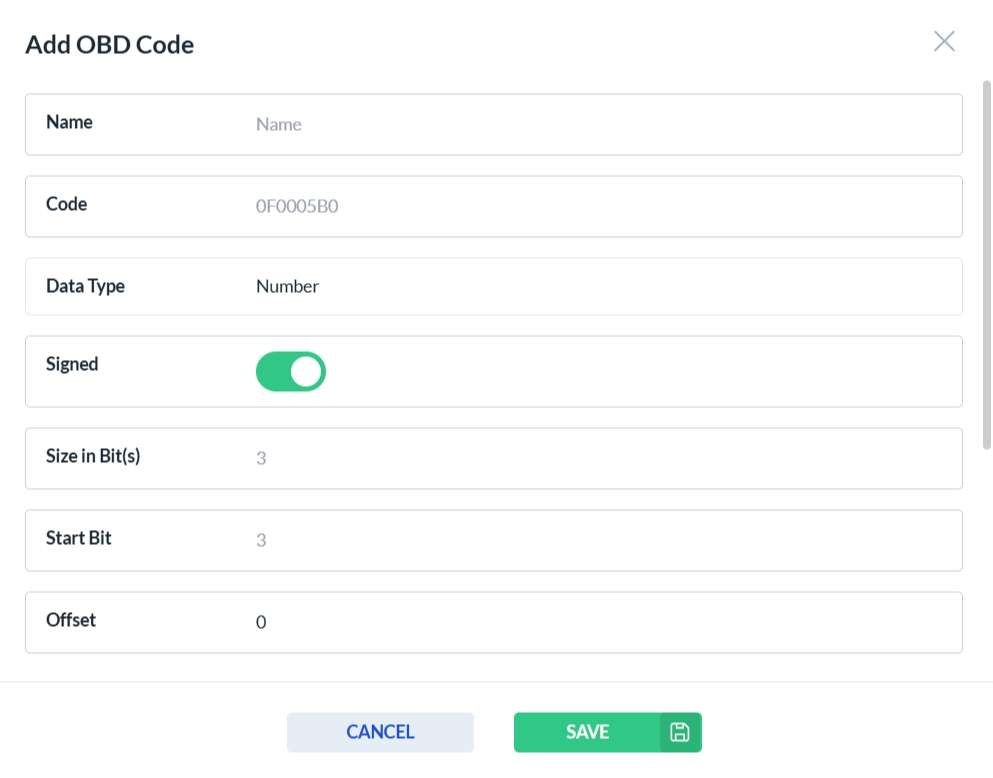

Add New OBD Code
To add a new OBD code, click the Add New button. This will open the OBD code form. Complete all required fields, then click Save to store the new OBD code or Cancel to discard your changes.

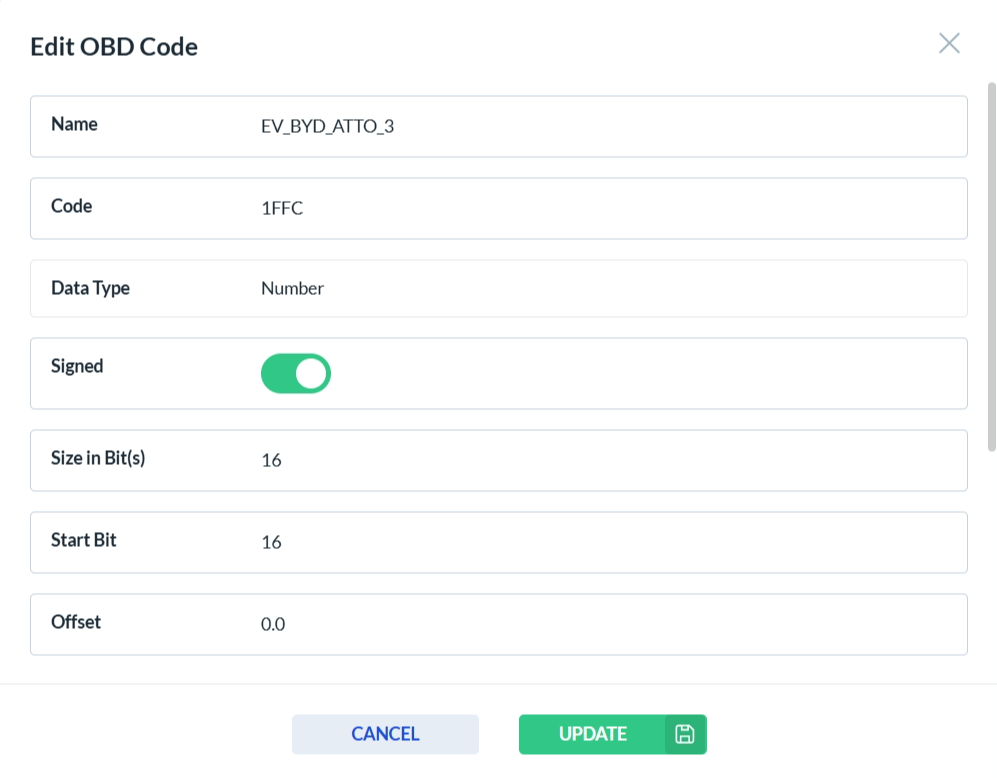

OBD Code Edit
After clicking the edit icon in the Actions column, the OBD code form opens. Only the fields that are enabled can be edited—disabled fields are read-only. Click Update to save your changes, or Cancel to discard them.

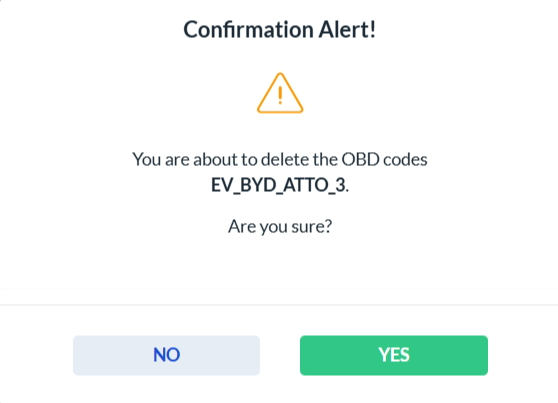

OBD Code Delete
To delete a OBD code, click the Delete icon in the Actions column. A confirmation dialog will appear. Click Yes to permanently delete the selected OBD code, or No to cancel the action.

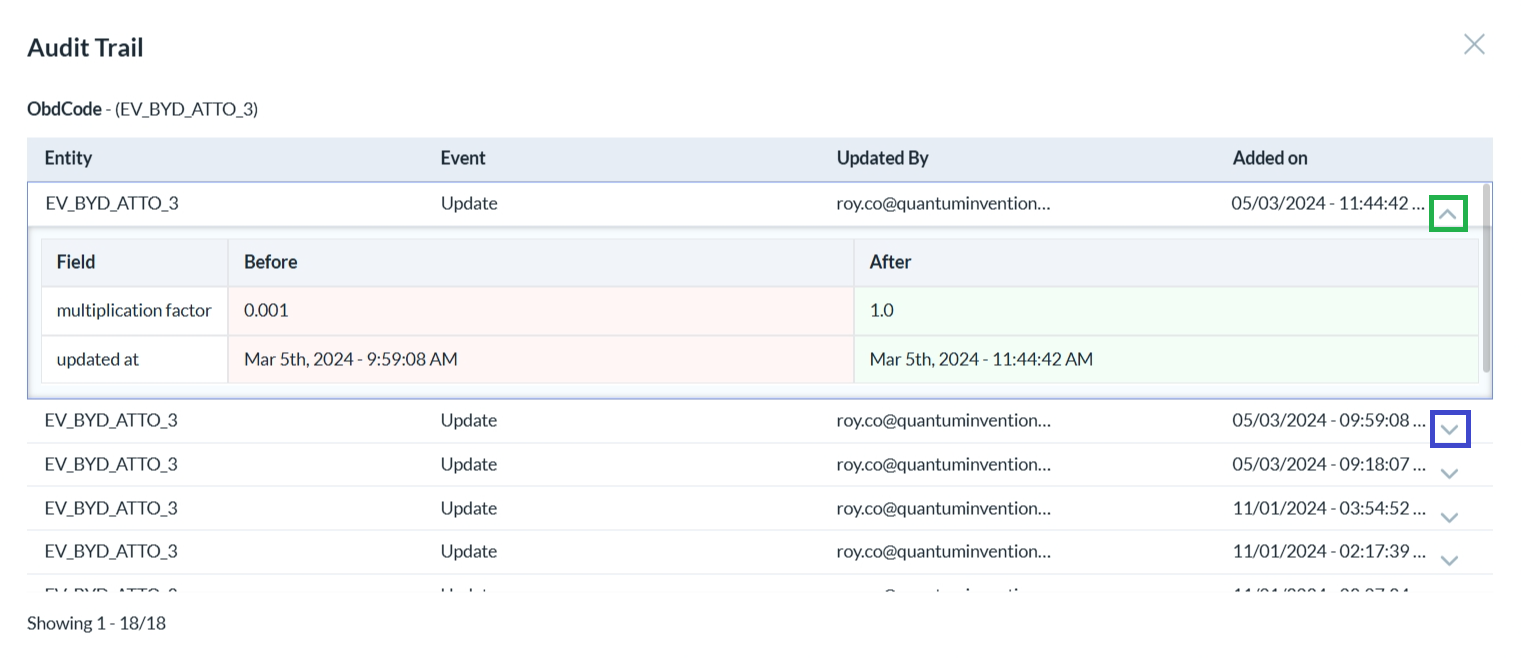

OBD Code Audit Trail
After clicking the audit trail icon in the Actions column, the audit trail opens. Click on the uncollapse icon to see the detailed changes (highlighted in a blue box). To collapse, click on the collapse icon (highlighted in a green box).
